Hand held instrument(Rs/Res)

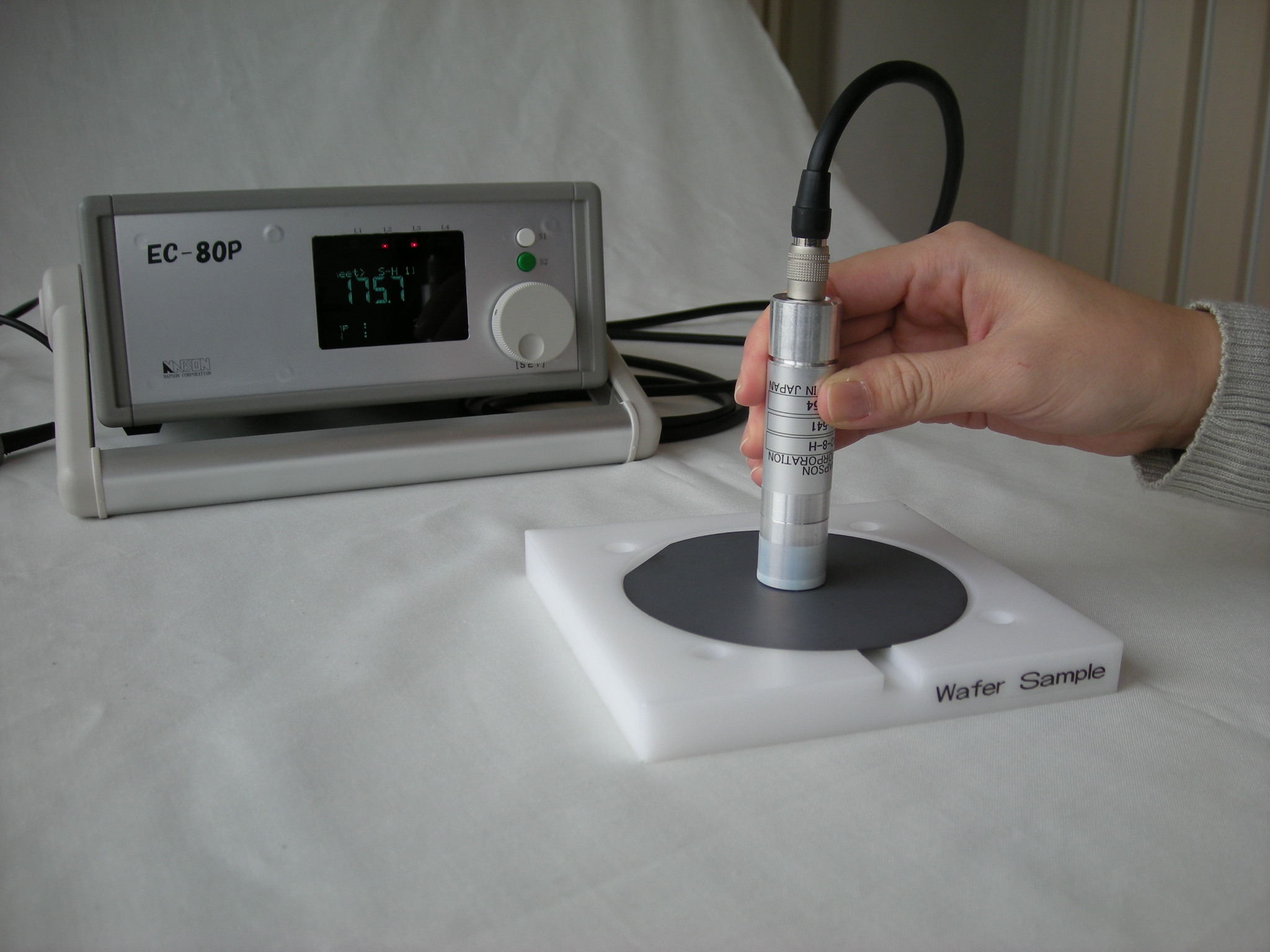

EC-80P (Portable)
- Rs : 0.01~3000Ω/sq
- Res : 0.001~200Ω·cm
- Applications : Silicon wafer, GaAs Epi, GaN, GaP, InP, ITO and metal layers
- Size : Any kinds of sizes (more than 14 mm)

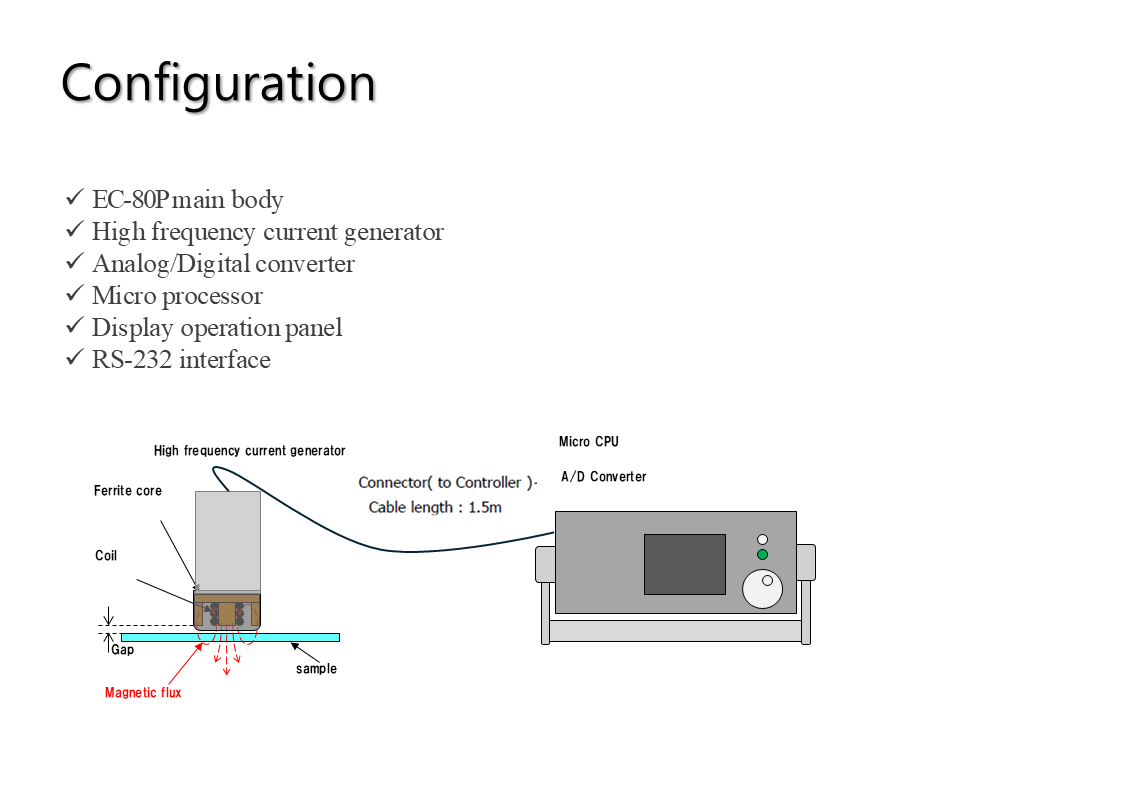

- Hand held eddy current probe measurement instrument

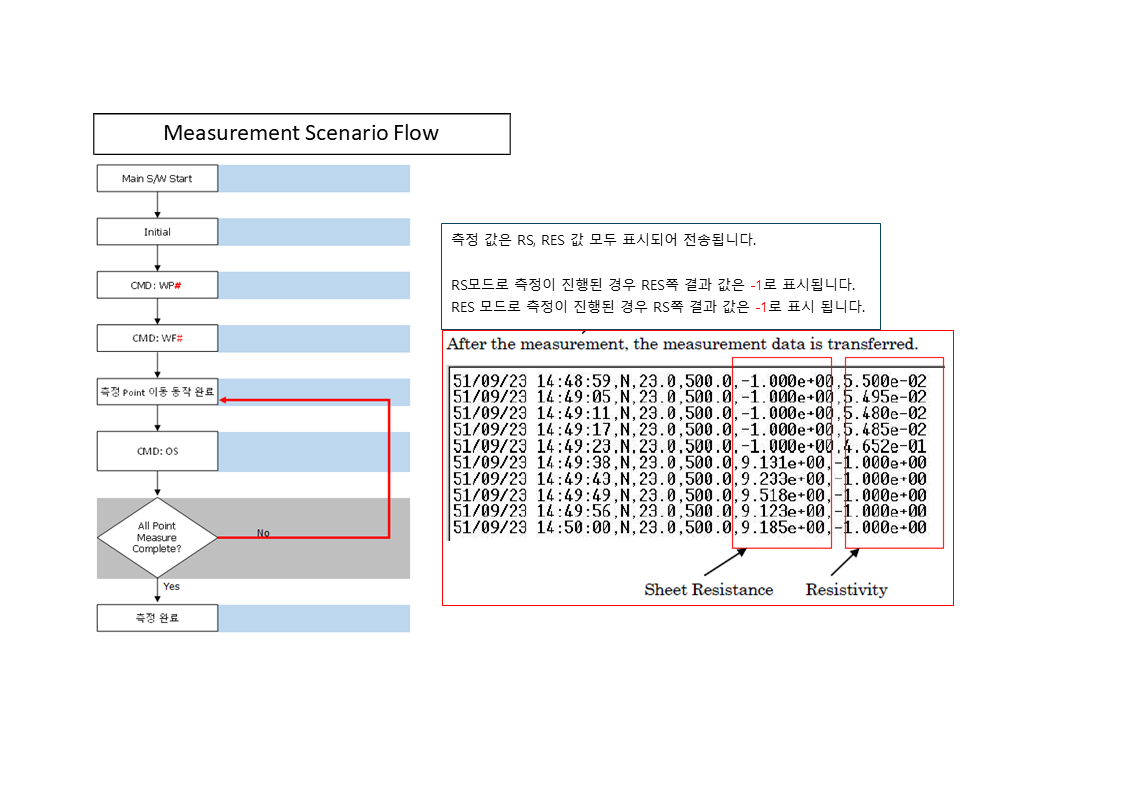

- 3 Measurement modes for wafer resistivity, bulk resistivity and sheet resistance

- Resistivity probe can be changed by sample's range

- Possible to add PN measurement probe (EC-80P-PN)

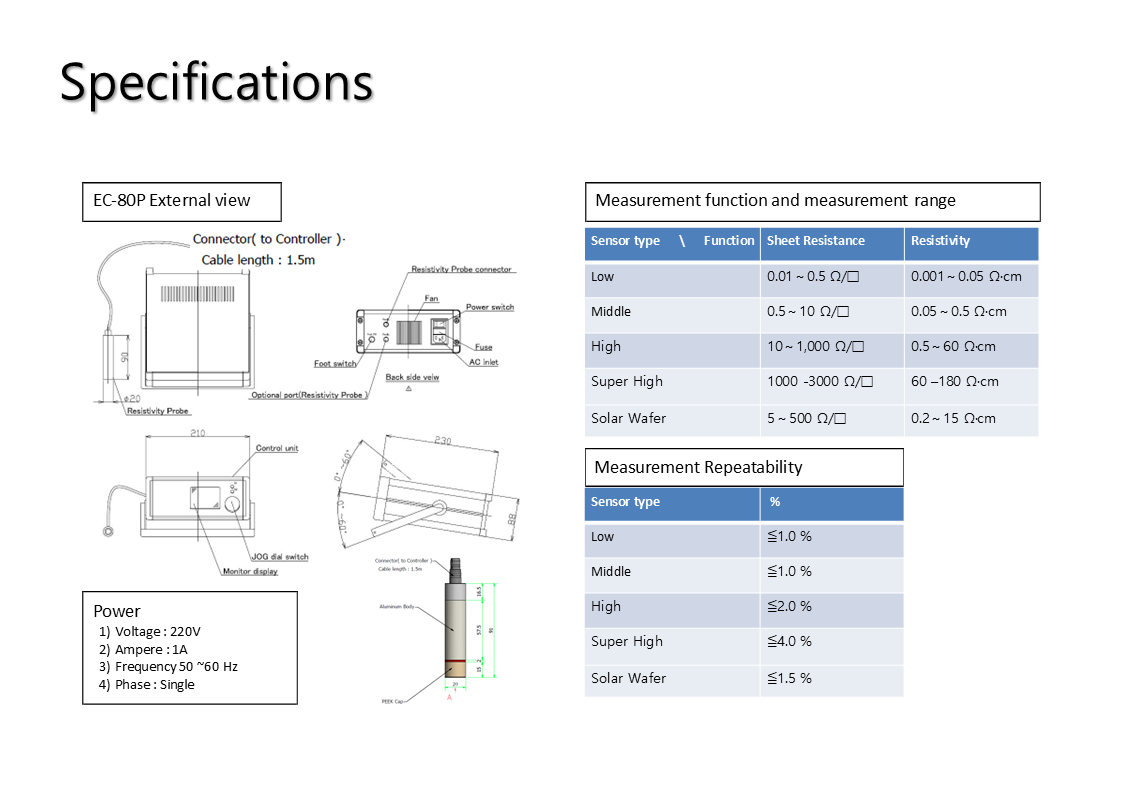

- 5 types of model for each measuring range

- Res : Low – 0.001~0.05 Ω·cm                      Rs : Low – 0.01~0.5 Ω/sq

Middle – 0.05~0.5 Ω·cm                              Middle – 0.5~10 Ω/sq

High – 0.5~60 Ω·cm                                    High – 10~1000 Ω/sq

Super High – 60~200 Ω·cm                         Super High – 1000~3000 Ω/sq
           Solar Wafer – 0.2~15 Ω·cm                         Solar - 5~500 Ω/sq
