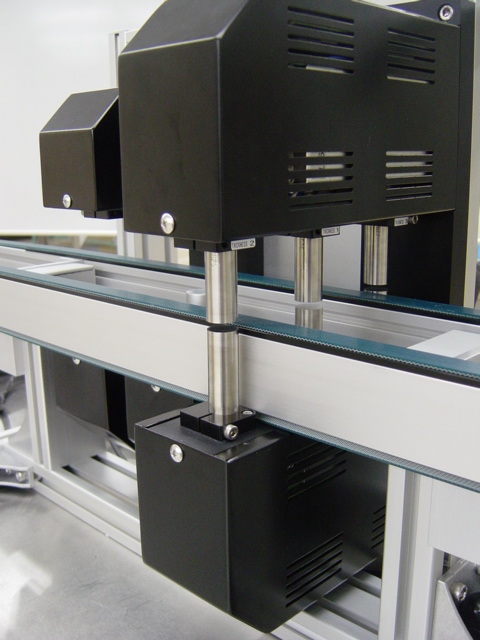

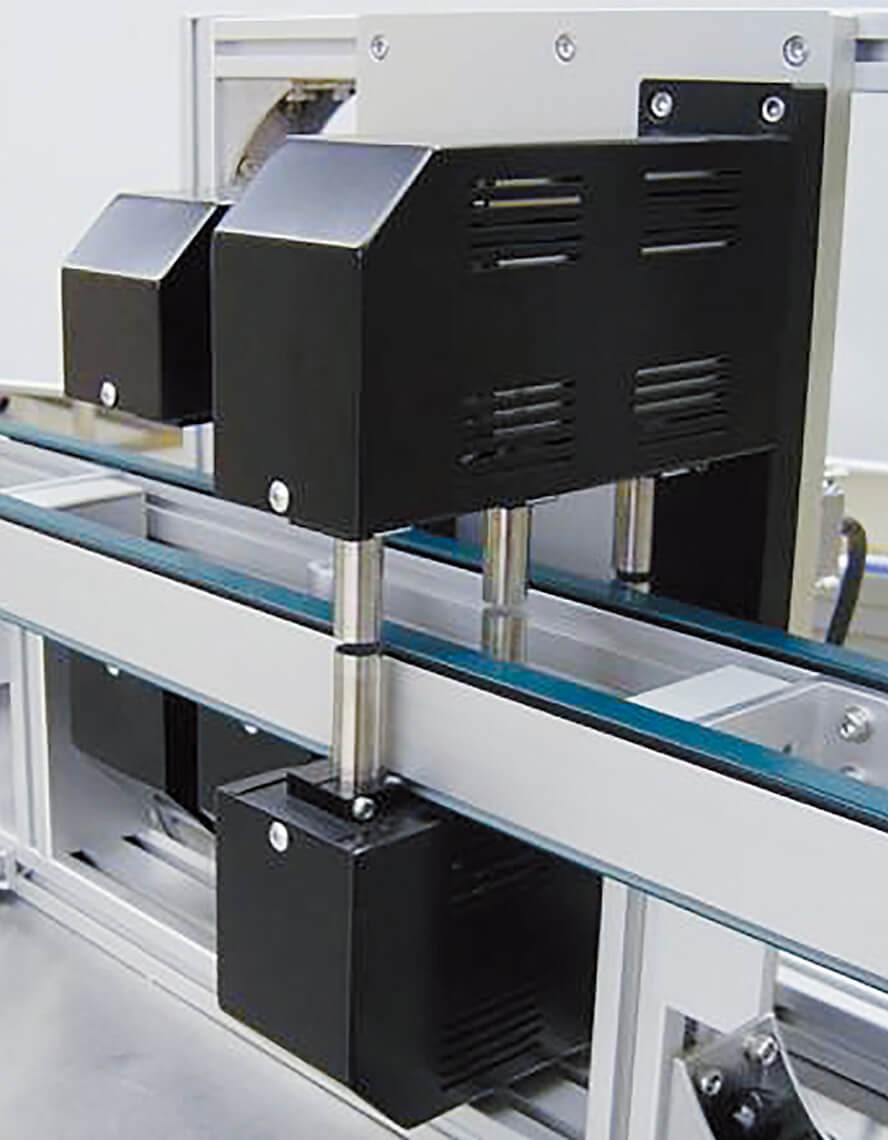

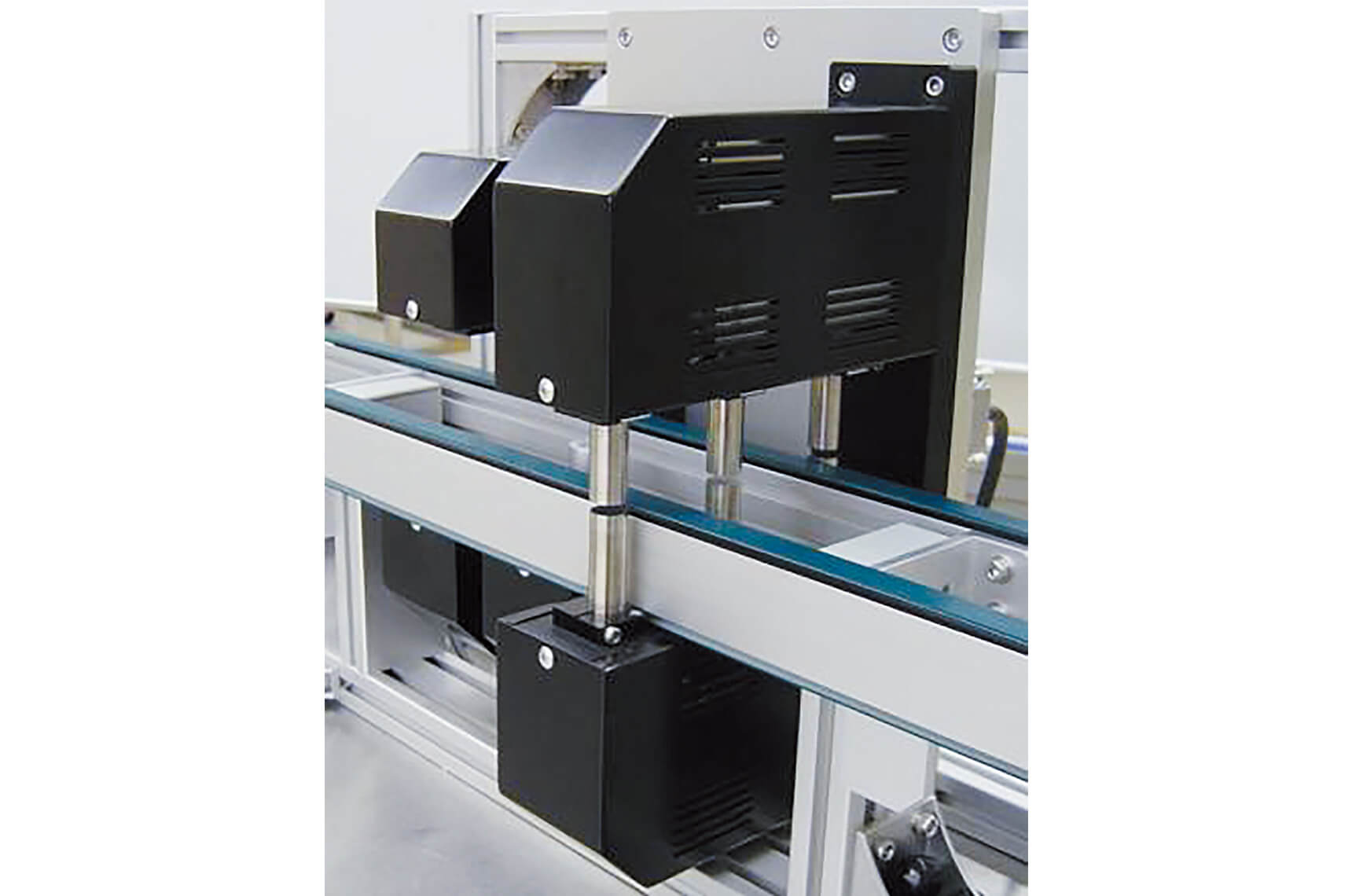

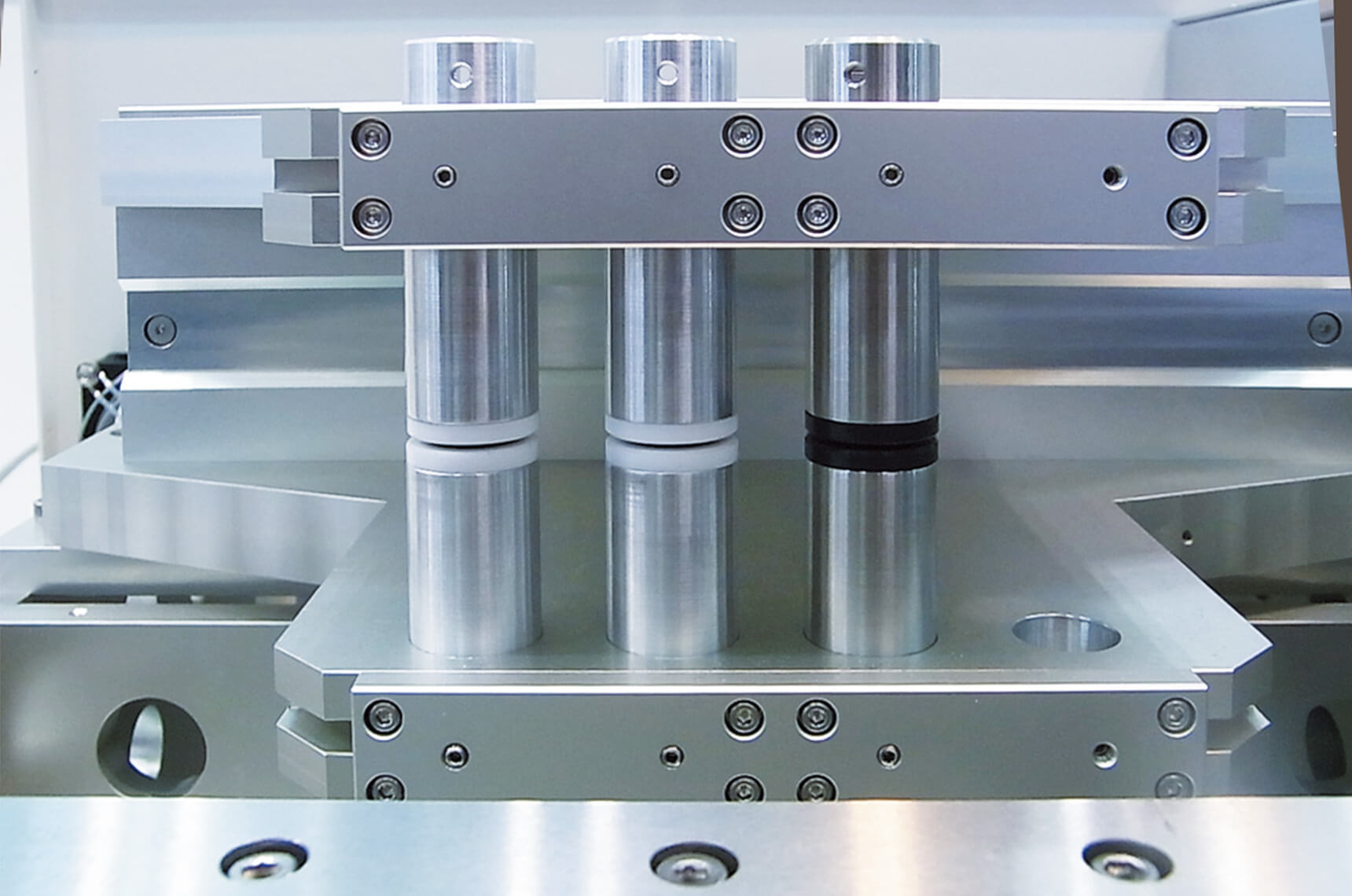

Inline Non-contact Res., PN, thickness and lifetime measurement
NC-100PV
- Res : 0.1~15 ¥Ø•cm
- Rs : 5~750 ¥Ø/sq
- Thickness : 100~500 ¥ìm
- Applications : Silicon wafer (Mono-crystalline, Poly-crystalline)
- Wafer sizes : 126, 156, 210mmSQ (PSQ)



- In-line on-the-fly measurement module for solar silicon wafer

- Possilble to measure Resistivity and/or Thickness by each module without contact


- Lifetime measurement module (option)

- PN type checker module (option)
