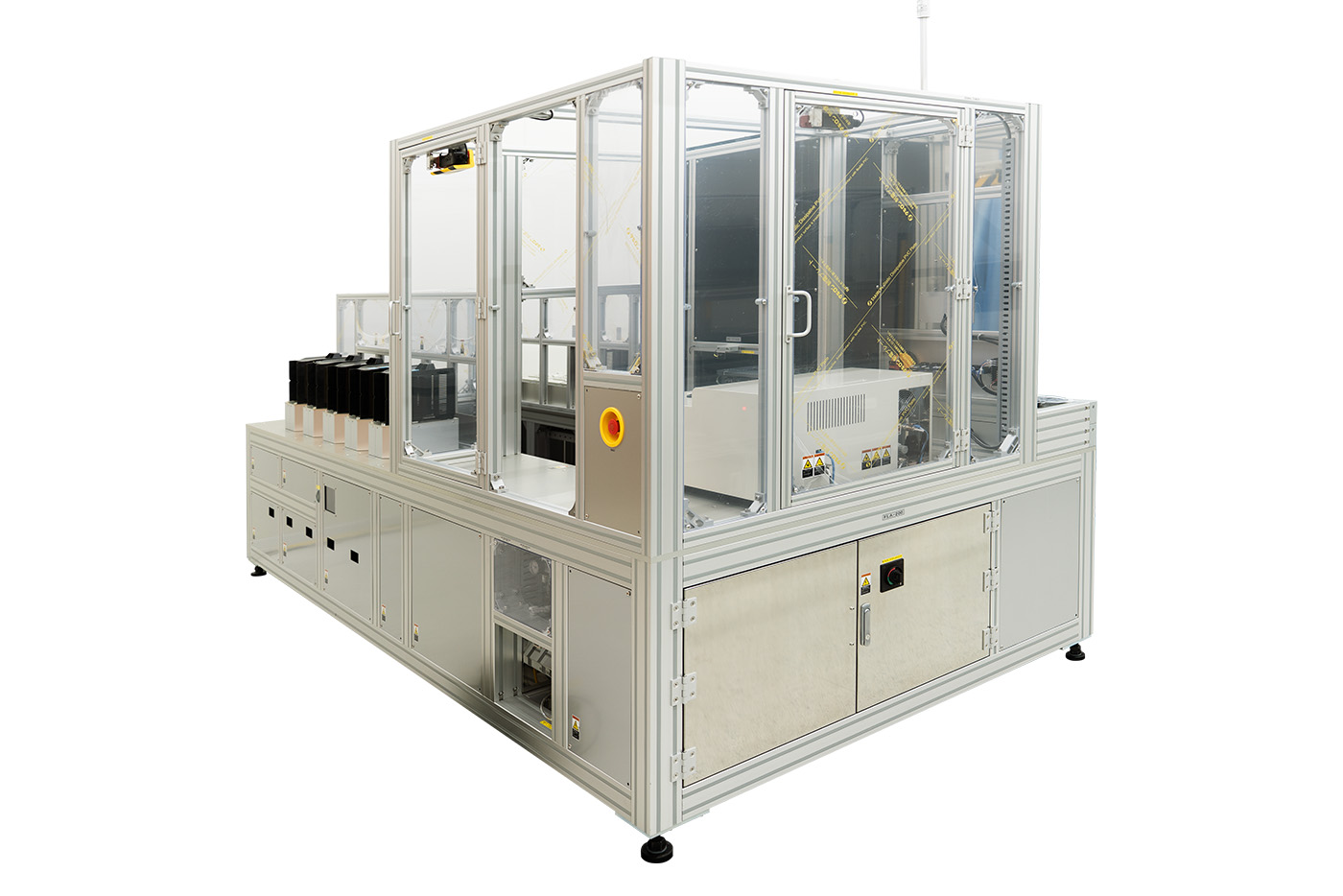

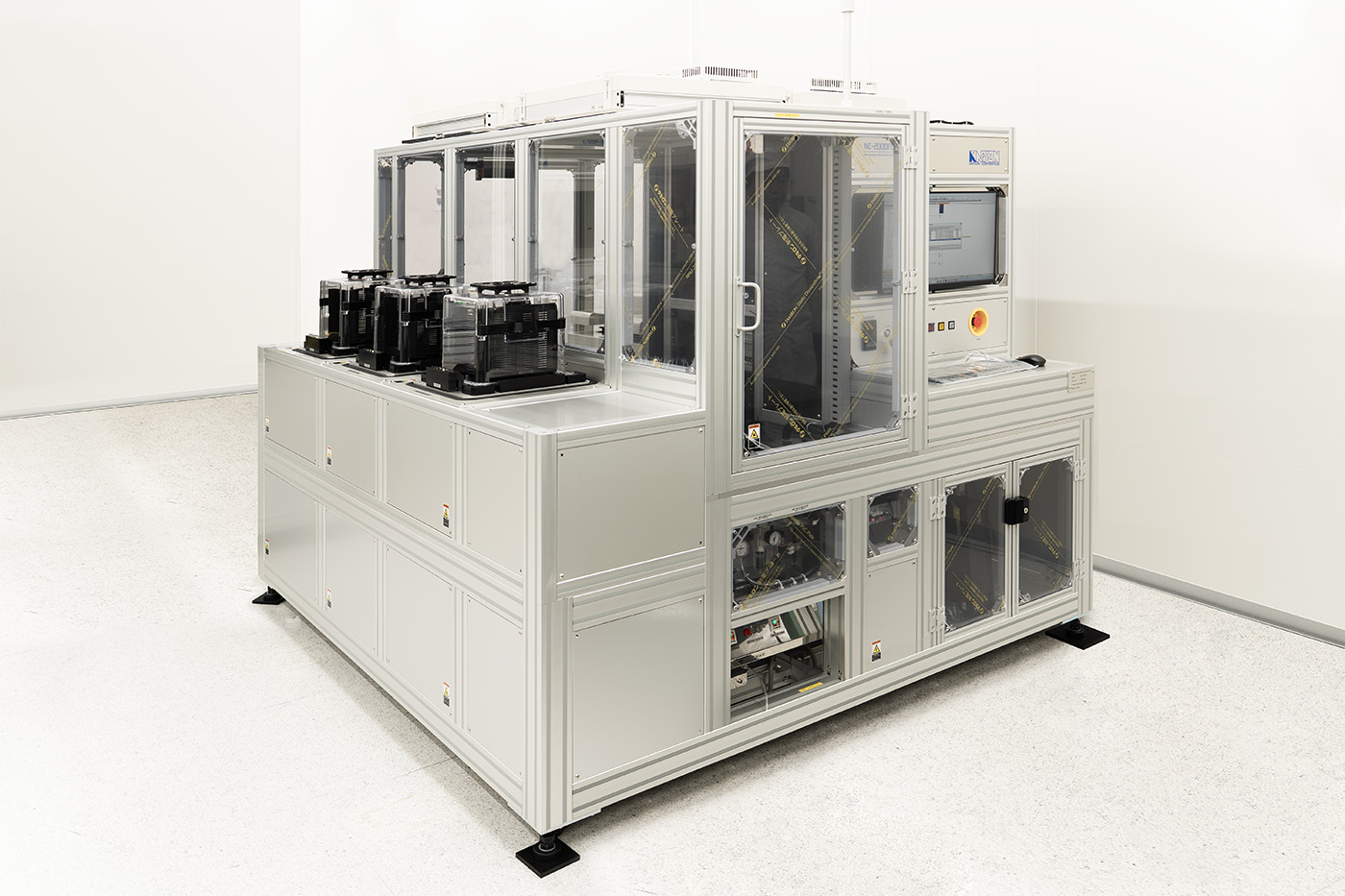

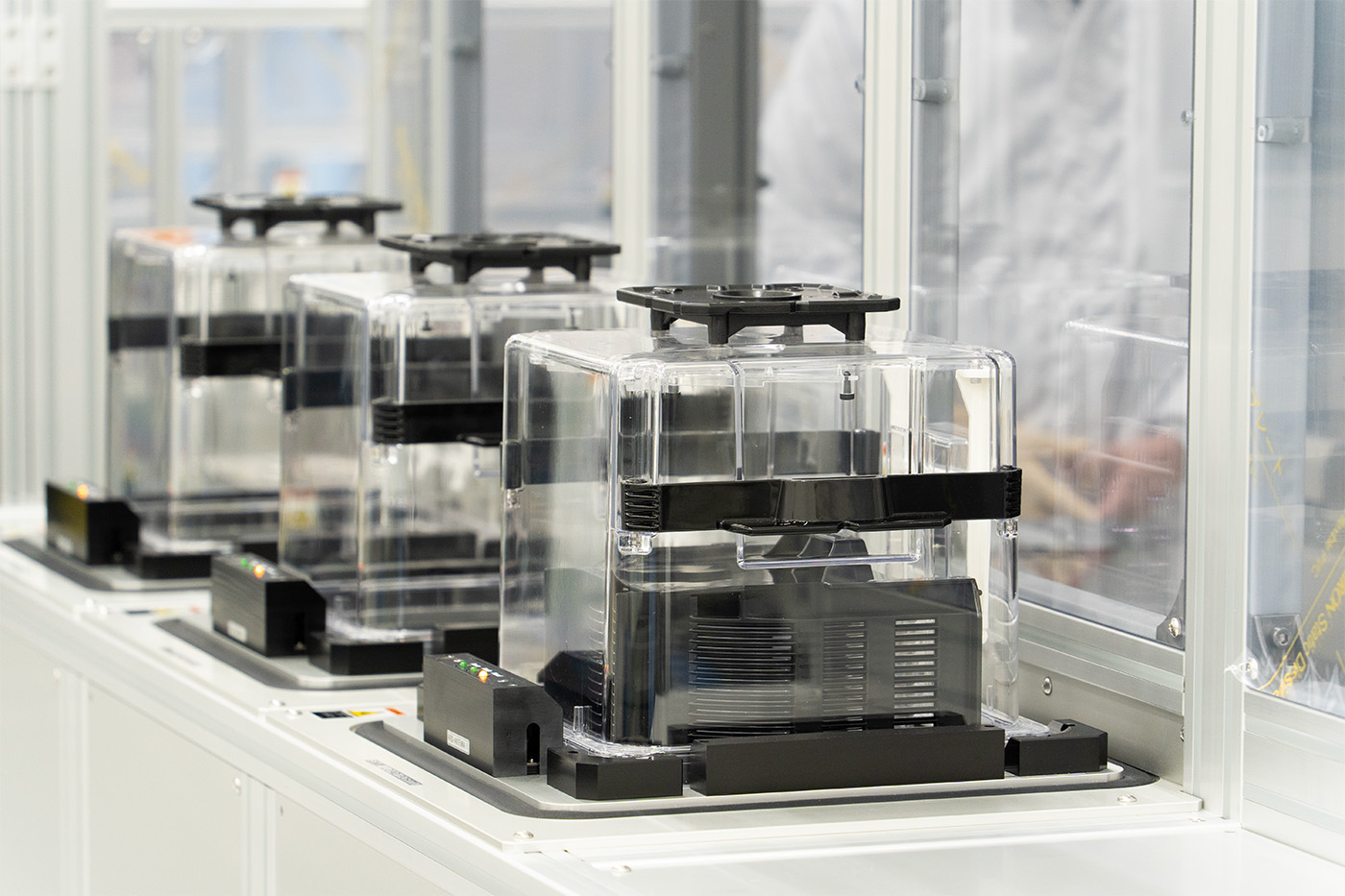

- Non-contact measurement of resistivity, Flatness (thickness) and conductivity (P/N) - Number of cassette station can be changed by customers request - Eddy current method for resistivity, Electric capacitance method for wafer thickness - Temperature correction function for silicon wafer
Sample sizes
- 3~8 inch
Measuring range
- [R] 1m~200 ohm-cm - [RS] 10m~3000 ohm/sq
* The range is separated from each Low, Middle, High and Super High probe type.
* Please refer the measurement range for each probe type as below
(1) Low : 0.1~0.5 ohm/sq (0.001~0.05 ohm-cm) (2) Middle : 0.5~10 ohm/sq (0.05~0.5 ohm-cm) (3) High : 10~1000 ohm/sq (0.5~60 ohm-cm) (4) S-High : 1000~3000 ohm/sq (60~200 ohm-cm)
