¿þÀÌÆÛ µÎ²²ÃøÁ¤±â Á¦Ç°º° > ¿þÀÌÆÛ µÎ²²ÃøÁ¤±â
Wafer µÎ²²ÃøÁ¤±â (Manual Type)

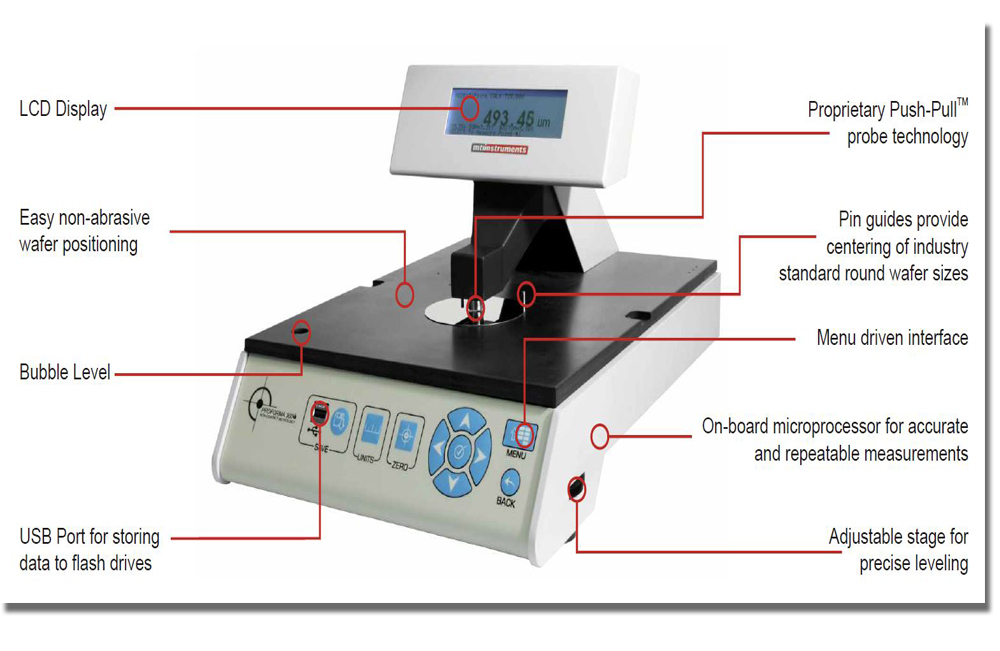

Proforma 300i
- Thickness,TTV & bow, Continuous and 5-point Measurement
- Thickness : Up to 1700¥ìm
- Applications : Si, InP, Ge, GaAs*(300Gi Model)
- Sample sizes : 76 - 300 mm wafer diameters


















 - Non-contact Measurements.

 - High-resolution LCD display

 - 5-point, TTV and bow measurements

 - Front USB port enables easy data storage to flash drives

 - MTI Instruments' Proprietary Capacitance Circuitry for Outstanding Accuracy and
   Dependability.

 - 76-300 mm Diameter Wafer Range.

 - +/-0.25 µm Accuracy.

 - RS-232 and Ethernet Output Port to PC.

 - Parallel Port for Printer.
